NB Fast Reader
Need a quote, bulk pricing or technical support? Contact RingbioSA on 076 608 3730 or email info@ringbiosa.co.za. Product instructions and certificates, where available, can be downloaded in the Documents section above.

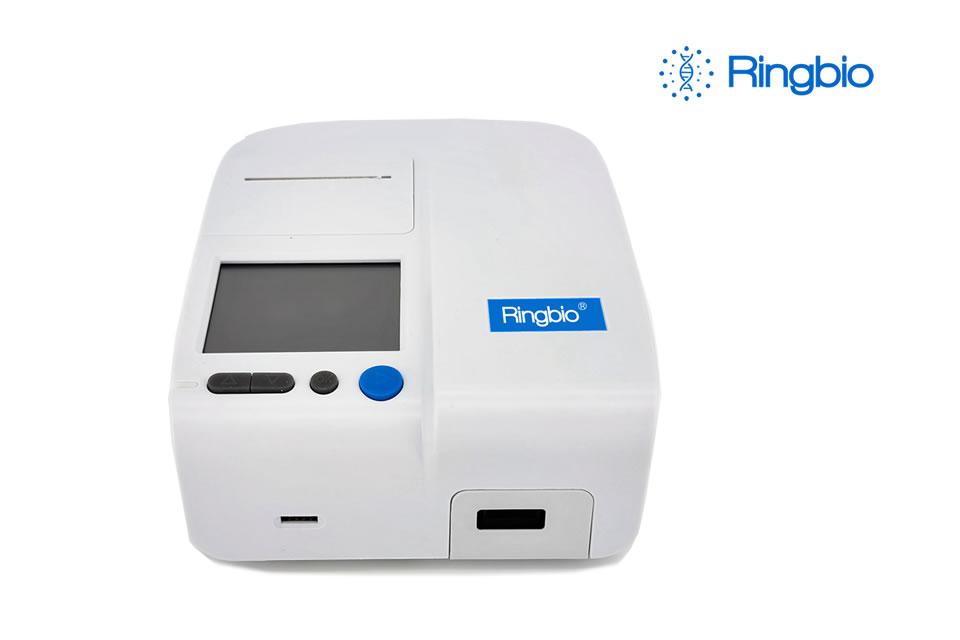

NBReader Fast 2 is a new Point-of-Care analyzing system. It is based on scanning the image of the test strip to produce digitalized data for all rapid tests.
RINGBIO NBReader® Fast 2 is an innovative new reading system for rapid test cards or test strips based on immunochromatography technology. With this reader, users can obtain rapidness, high sensitivity, repeatable detection and avoiding mistakes by visual interpretation.
Technical Data of NBReader Fast 2
| Parameters | Specification |
| Weight | ~ 1.0 kg |
| Dimension | 210mm×175mm×75mm |
| Power | 100 -240V, 50/60Hz, 12V DC |
| Display | 3.5 inch touch screen |
| Interface | USB, Ethernet, Wifi, GPRS |
| Working environment | 5-40oC, RH 10%-70% |
| Reading per test | <5s |
| Test C.V | <1% |
| Internal storage | 50000 entries |
| Printer | built-in thermal printer |
| Weavelength | 365nm/610nm/customized |
The difference between NBReader Q3 and NBReader Fast 2
- NBReader Q3 system has automatic strip injection and rejection function, which is not installed in Fast 2
- NBReader Q3 supports mouse and keyboard operation, while Fast 2 supports built-in key pad and fingertip touching.
